Welcome to AltairKit.com!
Home of the New Altair 8800 Kit!


Visit Stockly Electronics Forums for more pictures as they become available!


The completed Altair 8800 Kit

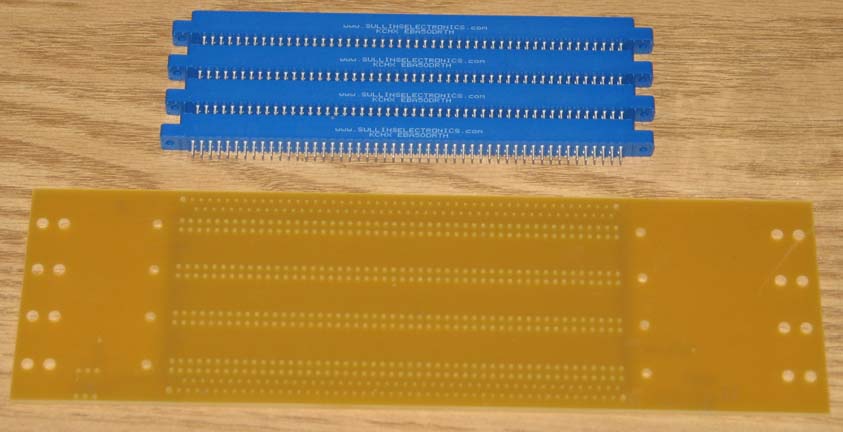

Motherboard and edge card connectors

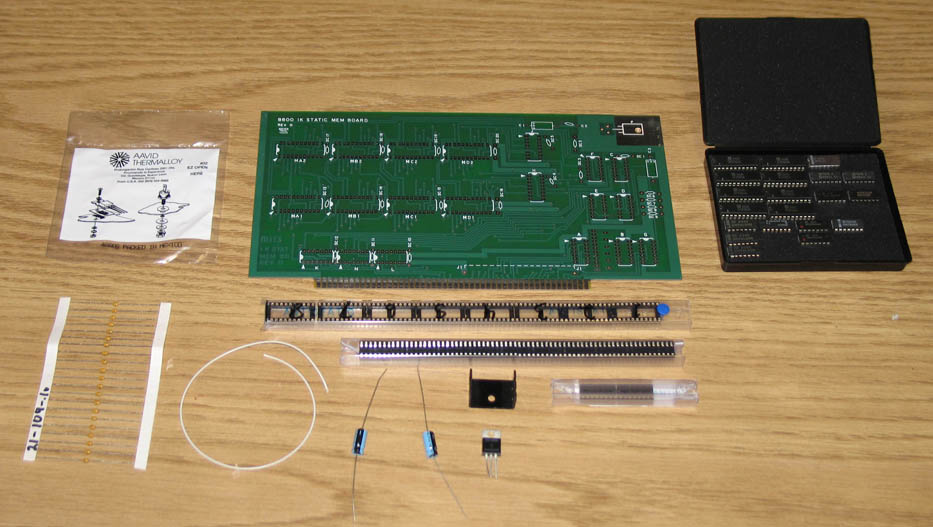

88-1MCS 1k Static RAM card kit

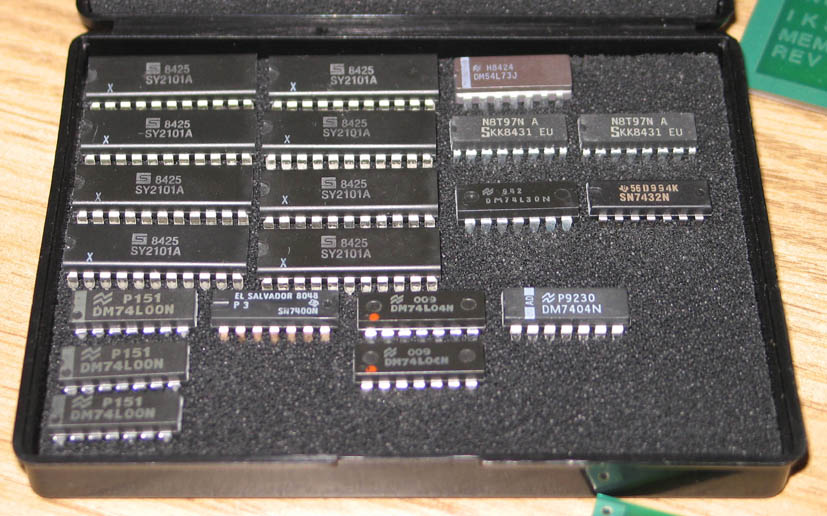

ICs used in the 1MCS - No Part substitutions on any of the kits!  All ICs follow MITS's BOM


1K memory card kit completed

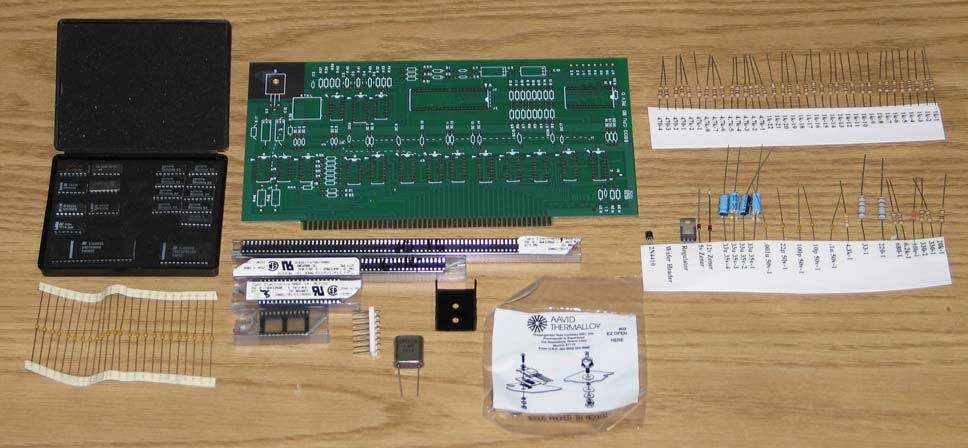

CPU Kit

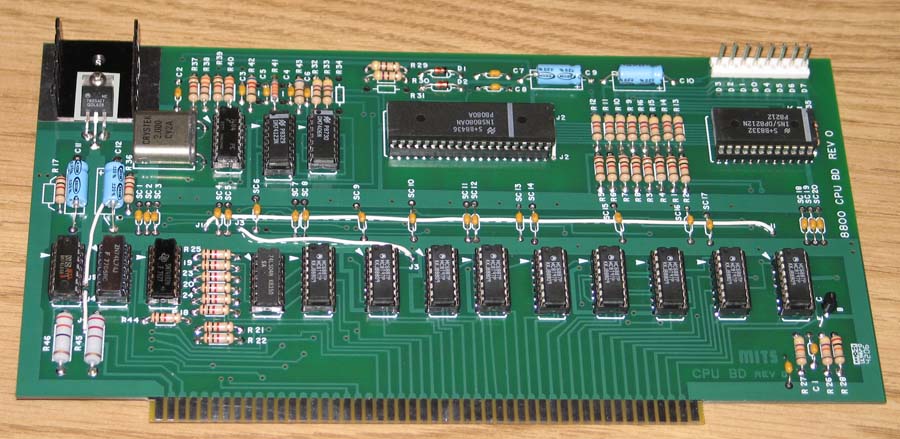

CPU Kit assembled

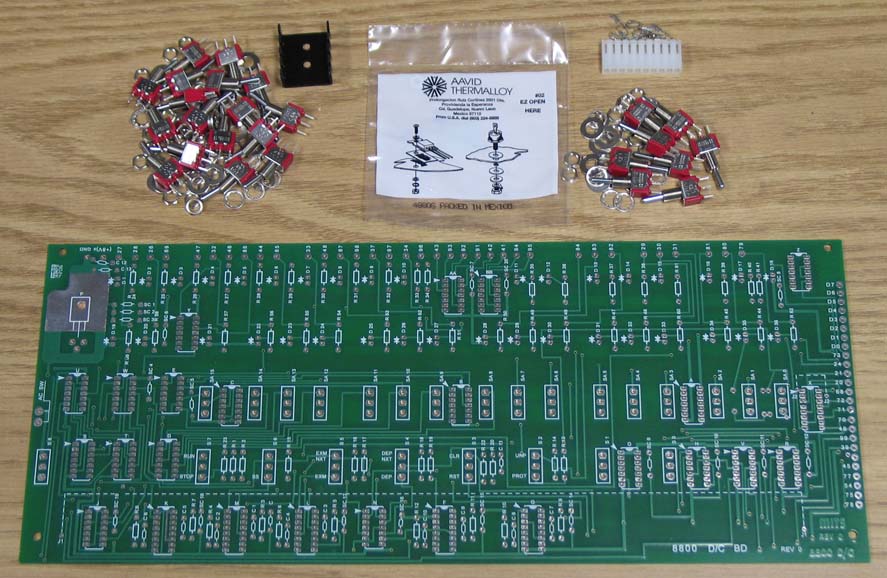

Display/Control board kit - ICs not shown, but are packaged the same as the above memory and CPU board

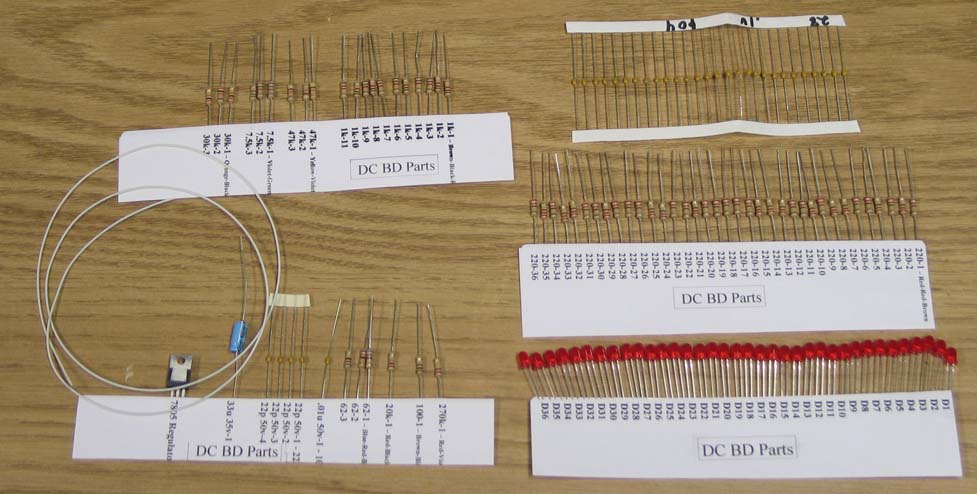

Display/Control card parts - Wire for connecting the DC board to the motherboard not shown, but is included (as part of the case kit)

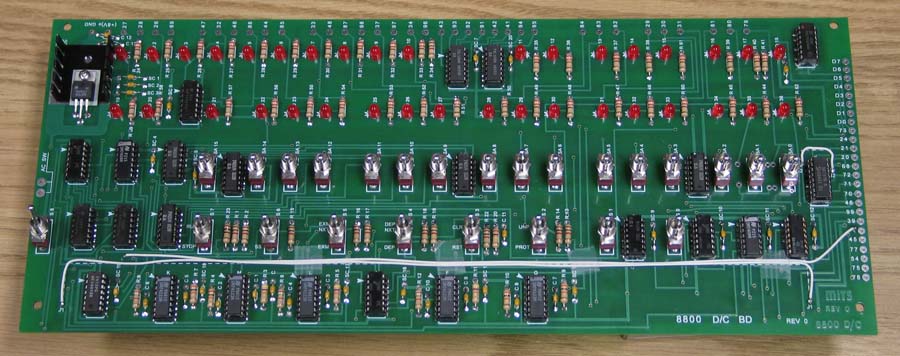

Partially completed display/control board (LEDs have not been soldered)


Optima Enclosure


Testing the Altair using a NOP NOP NOP NOP JMP 0000 program

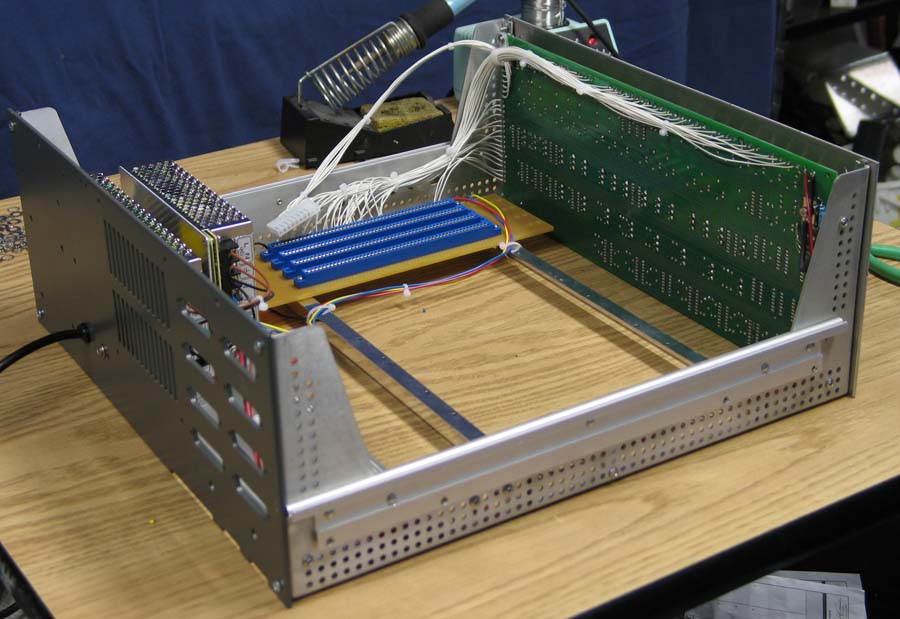

Wired, from the back side

Visit Stockly Electronics Forums for more pictures as they become available!
